double
ended style
has becket to simplify block and tackle system
2
3/8"
(60 mm)
x 5/8" (16 mm)
RC102
black $70.05
aluminum
single
bushing
breaking
strength 5,000
lbf
(22.2 kN)
11
oz (311 g
Non
stock
RC
103
blue $88.10
aluminum
single
bearing
breaking
strength 5000 lbf
(24.2 kN0
11
oz (31 g)
Non
stock
RC104
brite steel $102.25
single
sealed
needle
breaking
strength 10,000 lbf (44.48 kN)
14.5
oz (410 g)
Stock
item
RC105
steel $70.55
single
double
ended
bushing
breaking
strength 9500 lbf (42.25 kN)
15.5
oz (439 g)
Non
stock
RC106
steel $109.35
single
double
ended
bearing
breaking
strength 9500
lbf
(42.2
kg)
Non
stock

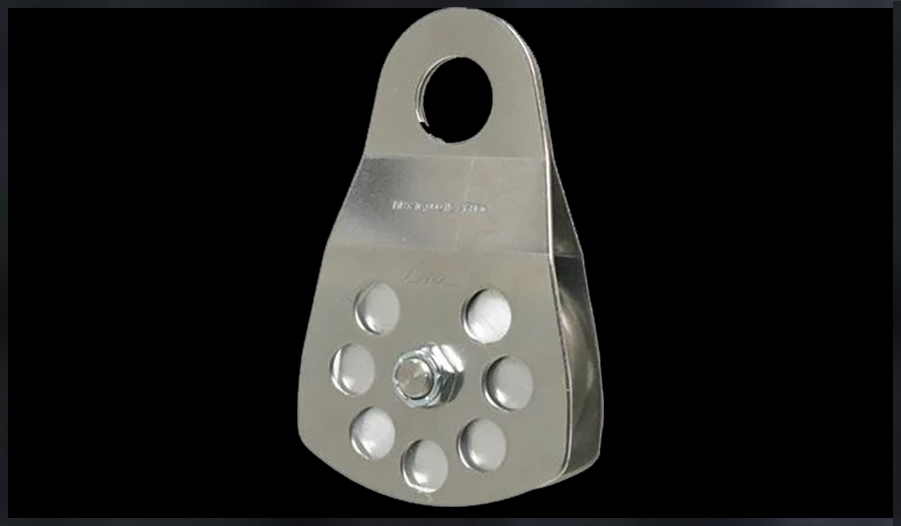

CMI Stainless Steel
Pulleys
manufactured
in
the usa
all
stainless steel sideplates, axle, nuts and 2" diameter sheave
ball
bearing
1"
diameter anchor hole
unique
sideplate allows user to snap pulley onto cable one handed
RP147
$109.40
cable
size 3/8" (10 mm)
2.5"
x 5" (6.3 cm x 12.5 cm)
14
oz (396 g)
MBS
14,000 lbf (62.5 kN)
RP148
$109.40
cable
size 1/2" (12.5mm)
2.5"
x 5" (6.3 cm x 12.5 cm)
14
oz (396 g)
MBS
14,000 lbf (
MBS
14,000 lbf (62.5 kN)
Non-stock
CMI Standard Rope
Pulleys
manufactured
in
the usa
swing
side cheeks
celcon,
aluminum
or
stainless sheave
top
hole accepts
two
carabiners
double
ended style
has becket to simplify block and tackle system
2
3/8” (60 mm) x 5/8” (16mm)
RP101
red aluminum $39.85
single
silicon
bearing
breaking
strength 3500 lbf
(15.57
kN)
6
oz (169 g)
RP102 black
aluminum $60.50
single
oilite
bushing
breaking
strength 5000 lbf (22.24
kN)
7
oz (198 g)
RP103
blue aluminum $83.15
single
needle
bearing
breaking
strength
3500 lbf (15.57
kN)
7
oz (198 g)
RP104
brite steel $96.60
single
needle
bearing
breaking
strength 10,000 lbf (44.48 kN)
10
oz (283g)
RP111
brite steel $66.75
single
double
ended
oilite
bearing
breaking
strength 9500 lbf (42.25 kN)
11
oz (311 g)
RP112
brite steel $102.25
single
double
ended
needle
bearing
breaking
strength 9500 lbf (42.25 kN)
11
oz (311 g)
Non-stock
SMC Stainless Steel Rope
Pulleys
manufactured
in
the usa
the
most widely used pulleys of their kind delivering the highest
levels of performance, quality and durability
optimal
combination of materials with every component perfectly matched
for its intended use and application
rugged,
lightweight and delivering reliable performance under even the
worst of conditions
available
in either Oilite Bushing or sealed Ball Bearings
oilite
(sintered bronze) bushing is popular for delivering reliable
performance at a reduced cost
sealed
ball bearings provide optimal efficiency and reduce
resistanc, not prone to failure under misaligned loads or with
twisted gear as can be the case with needle
bearings
axle-nuts
are double locked to the steel axle and marked with
a witness line in order to help detect any loosening
attachment
hole is sized to accept large carabiners with sufficient
room to allow the carabiner to rotate freely
designed
for maximum simplicity when setting up haul systems
triple-action
opening of the moving side plate is quick and easy, even with gloves
the
rope can be installed with the device connected to the anchor
red
mark provides a visual warning when the moving side plate is unlocked
special
side plate design protects the rope path
large
diameter sheaves mounted on sealed ball bearings for excellent
efficiency
parallel-mounted
sheaves and auxiliary attachment point for setting up various types of
complex haul systems
easy
handling:
swivel
allows pulley to be oriented under load
swivel
accepts up to three carabiners
swivel
and auxiliary attachment point allows the use of ropes or slings to
facilitate maneuvers
480g
certification(s):
CE EN 12278, NFPA 1983 pulley general use, UIAA
Material(s):
aluminum, stainless steel, nylon
accepts
7-13 mm rope
sheave
type: sealed ball bearings
sheave
diameter: 38mm
maximum
working load: 8 kN (3 kN per strand, breaking
strength: 36kN
efficiency:
95%
Gold
$139.95
Black $144.95
CMI
Swivel
Pulley
manufactured
in the usa
new
swivel pulley that combines a pulley with a swivel to offer superb
advantages
lighter,
stronger than comparable products and save valuable vertical space
available
with or witout a stainless steel slic pin that allows you to remove the
sheave
MBS:
9,900 lbs 44kN
Capacity:
½” rope
Sides:
AA
Sheave:
1 ¼” Alum
Mech:
Bushing
Size:
4 ½”x 2”
RP161RS
with slic pin $98.95
RP161 without slic pin $96.35
Rock

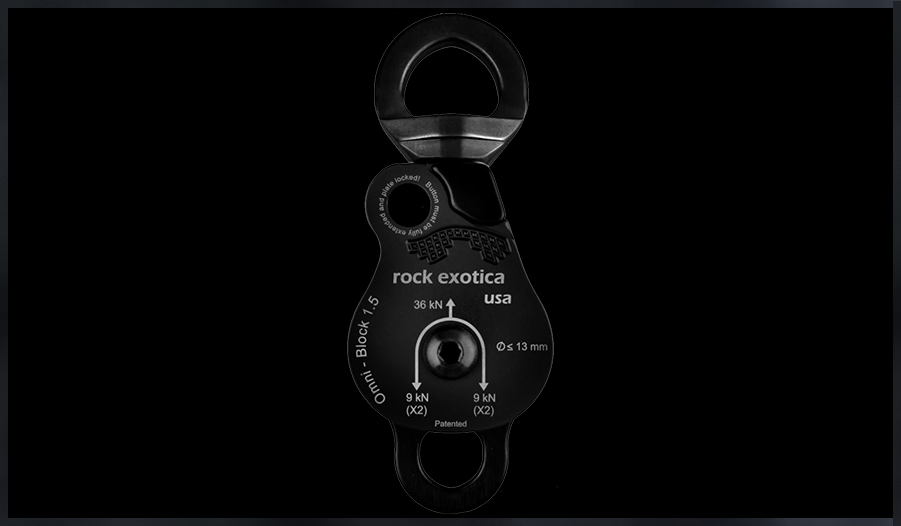

Exotica 1.5" (38 mm) Omni Block Pulleys
manufactured
in the usa
eliminates
twisting from rope rigging
systems with smooth, ball bearing action
precision
fabricated alloy block
has a unique button-activated release
allows
instant
access to the sheave for midline attachment
milled
alloy
attachment eye is large enough to accept most carabiners and snaps
aluminum
sheave
sheave
diameter 1.5" (38 mm)
CE
/
UIAA
certified
P51 1.5"
Single
9.2
oz. (260 gm)
MBS
36 kN
WLL
8 kN
Max
rope 1/2" (13 mm)
$94.00
P51B
1.5"
Single Black
9.2
oz. (260 gm)
MBS
36 kN
WLL
8 kN
Max
rope 1/2" (13 mm)
$96.00
P51D 1.5"
Double
14.5
oz. (411 gm)
MBS
36 kN
WLL
8 kN
Max
rope 1/2" (13 mm)
$138.00
P51DB
1.5" Double Black
14.5
oz. (411 gm)
MBS
36 kN
WLL
8 kN
Max
rope 1/2" (13 mm)
$140.00
Rock
Exotica products may have a lead time
up to 4-6 weeks.
Rock
Exotica 2" (50 mm) Omni Block Pulleys
manufactured
in the usa
eliminates
twisting from rope rigging
systems with smooth, ball bearing action
precision
fabricated alloy block
has a unique button-activated release
allows
instant
access to the sheave for midline attachment
milled
alloy
attachment eye is large enough to accept most carabiners and snaps
aluminum
sheave
sheave
diameter 1.5" (38 mm)
accepts
rope up to 1/2" (13 mm)
MBS
36 kN
CE
/
UIAA
certified
P53
2"
(50 mm) Single
12.3
oz. (348 gm)
MBS
36 kN
WLL
8 kN
Max
rope 1/2" (13 mm)
$118.00
P53B
2"
(50 mm) Single Black
12.3
oz. (348 gm)
MBS
36 kN
WLL
8 kN
Max
rope 1/2" (13 mm)
$120.00
P53D
2" (50 mm) Double
20.9
oz. (591 gm)
MBS
40 kN
WLL
10 kN
Max
rope 1/2" (13 mm)
$176.00
P53DB
2" (50 mm) Double Black
20.9
oz. (591 gm)
MBS
40 kN
WLL
10 kN
Max
rope 1/2" (13 mm)
$178.00
Rock
Exotica products may have a lead time
up to 4-6 weeks.
Rock
Exotica 2.6 (66 mm) Omni Block Pulleys
manufactured
in the usa
eliminates
twisting from rope rigging
systems with smooth, ball bearing action
precision
fabricated alloy block
has a unique button-activated release
allows
instant
access to the sheave for midline attachment
milled
alloy
attachment eye is large enough to accept most
aluminum
sheave
sheave
diameter 2.6" (66 mm)
MBS
80 kN
accepts
rope up to 1/2" (13 mm)
1.9
lbs oz. (850 gm)
carabiners
and snaps
CE /
UIAA
certified
P55
2.6" (66 mm) Single Orange
$188.00
P55
2.6" (66 mm) Single Black
$190.00
Rock
Exotica products may have a
lead time up to 4-6 weeks.
Rock
Exotica 1.5" (38 mm)
Omni Block Shackle Pulley
manufactured
in the usa
eliminates
twisting from rope rigging
systems with smooth, ball bearing action
precision
fabricated alloy block
has a unique button-activated release
allows
instant
access to the sheave for midline attachment
milled
alloy
attachment eye is large enough to accept most carabiners and snaps
CE
/
UIAA
certified
P51SH
Single Shackle Top
$110.00
Rock
Exotica products may have a
lead time up to 4-6 weeks.
Rock
Exotica
Aztec Pulleys
manufactured
in the usa
hewn
from a solid block of high
strength aluminum
engineered to
withstand over
8,000 lbs (36kN) of tensile force end to end
configured
as "set-of-fours" enables greater versatility and mechanical advantage
set
of two blocks are different
colors for ease of identification
turn
the set-of-fours one way and
you have a 5:1 mechanical advantage
turn
it around and a 4:1 w / change
of direction is the result
one
quick pin is sold with each set of blocks
additional
pins available
15.4
oz. (436g)
PLAZTST
Orange / Blue $235.00
PLAZTSTB Black
$240.00
Rock
Exotica products may have a
lead time up to 4-6 weeks.

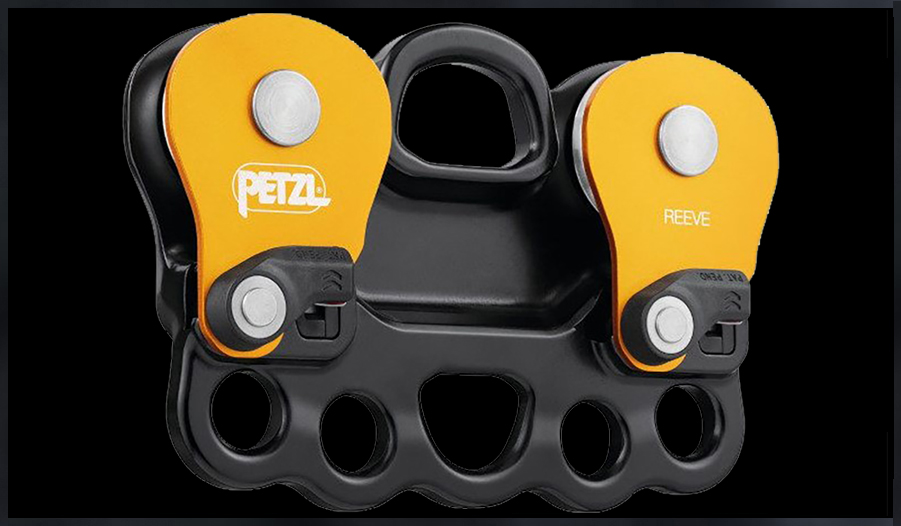

Petzl
JAG
Hauling Rig
allows
pickoffs, making a releasable anchor, tensioning a system...
can
be coupled with an I'D descender to make a reversible haul kit
4:1
mechanical advantage allows user effort to be divided by 4
excellent
efficiency due to sheaves mounted on sealed ball bearings
deployment
possible even when the distance to the anchor is very short, thanks to
the extreme compactness of the collapsed system
8
mm
lightweight rope
mechanical
advantage guarantees a good grip
quick
and easy to deploy, kit always ready to use, thanks to the flexible
cover that prevents any risk of tangling
haul
end immediately identifiable, thanks to the yellow color of the end of
the cover
the
ends of the cover hold the connectors in position to facilitate clipping
comes
with two Am'D TRIACT-LOCK auto-locking carabiners
available
in three lengths: 1, 2 and 5 m
Material(s):
aluminum, nylon, polyurethane
Rope
diameter: 8 mm
Certification(s):
EAC
Sheave
type: sealed ball bearings
Working
load: 6 kN
Breaking
strength: 16 kN
Efficiency:
91 %
Weight
1460 g
P044AA00
1 meter
$329.95
P044AA01 2 meters $349.95
P044AA02 5 meters $399.95
Stock item
Rock-N-Rescue Pre-rigged
4:1 Hauling
Rig
pre-rigged
4:1 mechanical advantage
lifting / lowering system using a double camming pulley
designed
to lift and lower live
loads or equipment
rigged
with 1/2″ NFPA 2 person
rated rope
maximum
safe working load at the
load end of the system is 1,760 lbs and 440 lbs at the cam
all
components exceed the current
NFPA, ANSI and OSHA requirements
includes:
R-N-R
double camming pulley
R-N-R
double sheave pulley
1/2"
NFPA 2 person rope (Length
varies depending on kit
2
carabiners
storage
bag
Hauling
Distance:
25 ft $650.00
50 ft $765.00
75 ft $880.00
100 ft $995.00
CMI 8:1
Ratio Pulleys
manufactured
in the usa
utilizes
8 sheaves that turn on sealed ball bearings for upto 8:1 ratio
mechanical advantage
the
lower quad sheave pulley is mated to
the upper quad sheave
remotely
triggered retractable brake
the
cam can be locked in the open position to allow freedom of movement up
and down or it can be closed so that the user can pull the load and
simply let go of the rope, stopping the load in the current position
upper
pulley
5.50"x4.25"
(14 cm x 10.8 cm) 1.20lbs (544
g)
lower
pulley 4.25" x 3.25" (10.8 cm x 8.2 cm) 1.05 lbs (476 g)
pulley
MBS 11,000 lbf(48.8 kN)
version
including rope - 100 ft (30 m) NER VPC hybrid performance
braid 8 mm rope with a strong,
lightweight
core of vectran and polyefin surrounded by a durable UV-resistant
polyester cover, low elongation and excellent hand grip
/ 12
ft (3.6 m) fully extended when rigged
8:1
CMI81
Pulleys only
$335.00
CMI81
Including
Rope $540.95
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
